How to use n8n — a comprehensive step-by-step guide

n8n is an open-source, low-code workflow automation tool that you can run locally, self-host in production (Docker, Docker-Compose, Kubernetes), or use as a hosted Cloud plan. You design workflows visually by connecting nodes (triggers, actions, transforms); n8n supports webhooks, scheduled triggers, hundreds of built-in integrations, JavaScript/Python code nodes, credentials, and advanced features like queue/worker mode for scaling. This guide walks you from zero → production-ready. (If you want a cut-and-paste checklist at the end, jump to “Production checklist & troubleshooting”.)

Key official references used in this guide: n8n docs (installation / Docker / webhooks / expressions / queue mode / env vars).

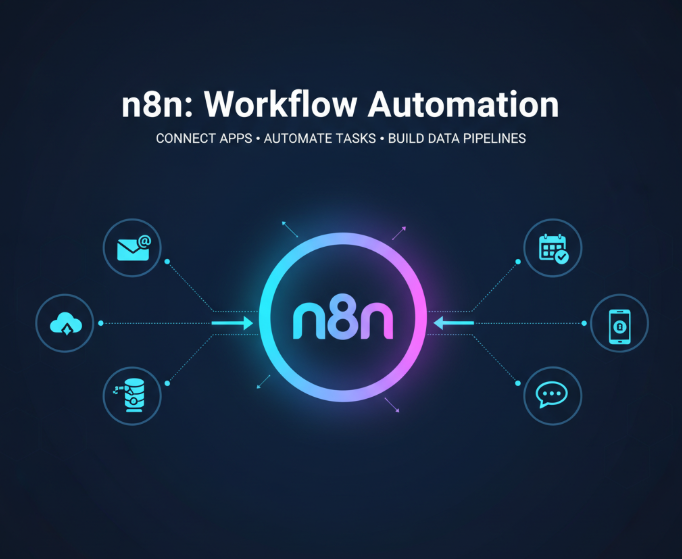

1) Quick orientation — what n8n does and when to use it

• What it is: a visual automation/orchestration platform where workflows are built by chaining nodes (triggers, transforms, API calls, app integrations). You can do everything from simple “email on form submit” automations to complex, multi-step integrations with error handling and retries.

• Why people pick n8n: source-available (self-host if you need data control), very extensible (custom nodes, code node), and a visual editor that’s friendly to non-devs while still powerful for engineers. You can run it locally for testing and move to a Docker / server / cloud deployment for production.

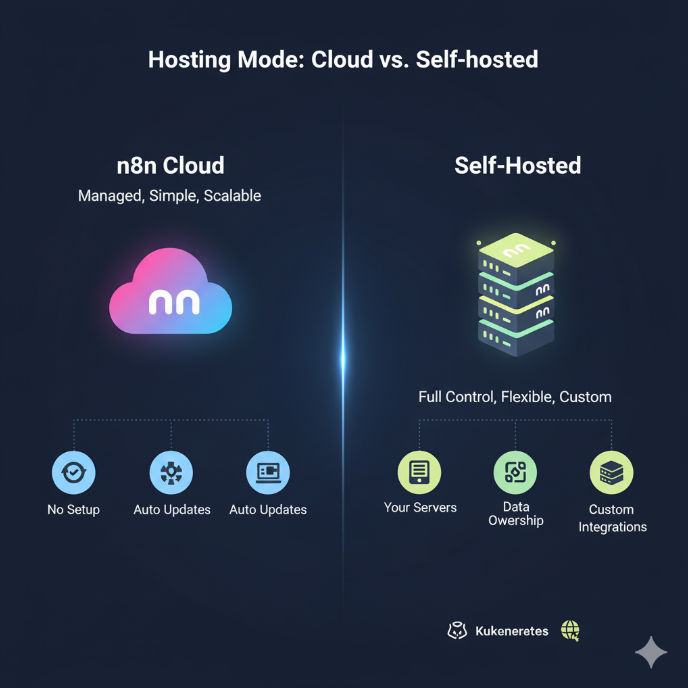

2) Choose hosting mode: Cloud vs Self-hosted

Before you install, pick where you’ll run n8n:

• n8n Cloud (hosted): fastest way to get started—no infra to manage, automatic updates, team features. Good if you don’t want to maintain servers.

• Self-hosted (recommended for production control / compliance): run on your own server (Docker, Docker-Compose, Kubernetes, VPS). You keep data/credentials in your environment — but you must handle backups, scaling, and security. Community threads and the hosting docs discuss tradeoffs (security, cost, control).

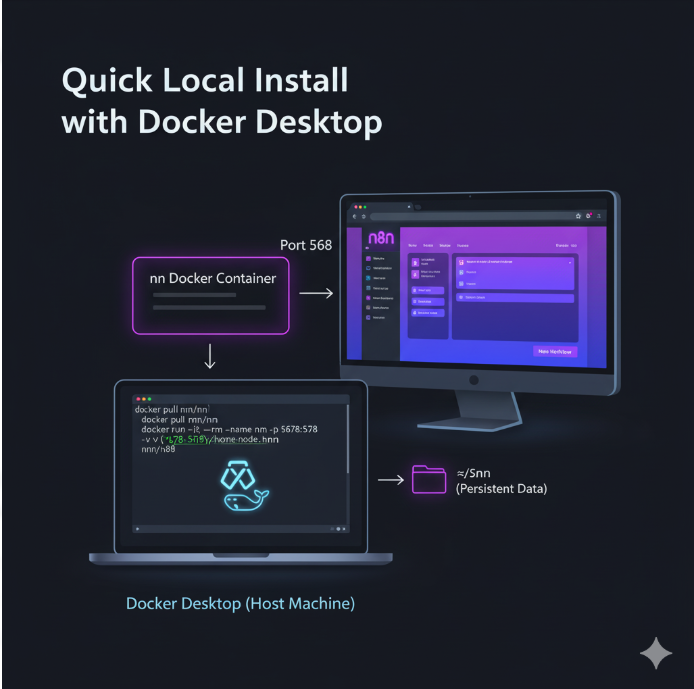

3) Quick local install (developer/test machine) — Docker Desktop

If you just want to experiment locally, Docker is the easiest:

1. Install Docker Desktop (Windows/macOS) or Docker Engine (Linux).

2. Run n8n with a command like:

   docker run -it --rm \
     --name n8n \
     -p 5678:5678 \
     -v ~/.n8n:/home/node/.n8n \
     n8nio/n8n:latest


3. Open http://localhost:5678 and play with the visual editor.
   This is perfect for prototyping; it uses a local SQLite DB by default. For production, use Postgres + persistent volumes. See the official Docker install docs for up-to-date options.


4) Production / persistent install — Docker-Compose sample (with Postgres + Redis + queue workers)

For production, use Docker-Compose (store data in Postgres, use Redis for queue mode). The snippet below is a starting point, adapt it to your infra and secrets management.

version: '3.7'
services:
  postgres:
    image: postgres:15
    environment:
      POSTGRES_USER: n8n
      POSTGRES_PASSWORD: changeme
      POSTGRES_DB: n8n
    volumes:
      - postgres_data:/var/lib/postgresql/data

  redis:
    image: redis:7
    command: ["redis-server", "--save", "60", "1"]

  n8n:
    image: n8nio/n8n:latest
    depends_on:
      - postgres
      - redis
    environment:
      - DB_TYPE=postgresdb
      - DB_POSTGRESDB_HOST=postgres
      - DB_POSTGRESDB_PORT=5432
      - DB_POSTGRESDB_DATABASE=n8n
      - DB_POSTGRESDB_USER=n8n
      - DB_POSTGRESDB_PASSWORD=changeme
      - N8N_HOST=0.0.0.0
      - WEBHOOK_URL=https://your.domain.tld/
      - N8N_ENCRYPTION_KEY=${N8N_ENCRYPTION_KEY}   # IMPORTANT: set in env file/secret store
      - EXECUTIONS_PROCESS=queue
      - QUEUE_BULL_REDIS_HOST=redis
      - N8N_BASIC_AUTH_ACTIVE=true
      - N8N_BASIC_AUTH_USER=admin
      - N8N_BASIC_AUTH_PASSWORD=verysecure
    ports:
      - "5678:5678"
    volumes:
      - ./.n8n:/home/node/.n8n

  n8n-worker:
    image: n8nio/n8n:latest
    depends_on:
      - postgres
      - redis
    environment:
      - EXECUTIONS_PROCESS=queue
      - N8N_MODE=worker
      - QUEUE_BULL_REDIS_HOST=redis
      - N8N_ENCRYPTION_KEY=${N8N_ENCRYPTION_KEY}

Notes:

• EXECUTIONS_PROCESS=queue and worker mode split UI/main process from execution workers (recommended for scale). Workers pick jobs from Redis.

• Backup your N8N_ENCRYPTION_KEY — credentials are encrypted with it; losing it will break access to stored credentials. You can set N8N_ENCRYPTION_KEY as an env var or file.

For full Docker-Compose options and production config examples, see the n8n server setup docs.

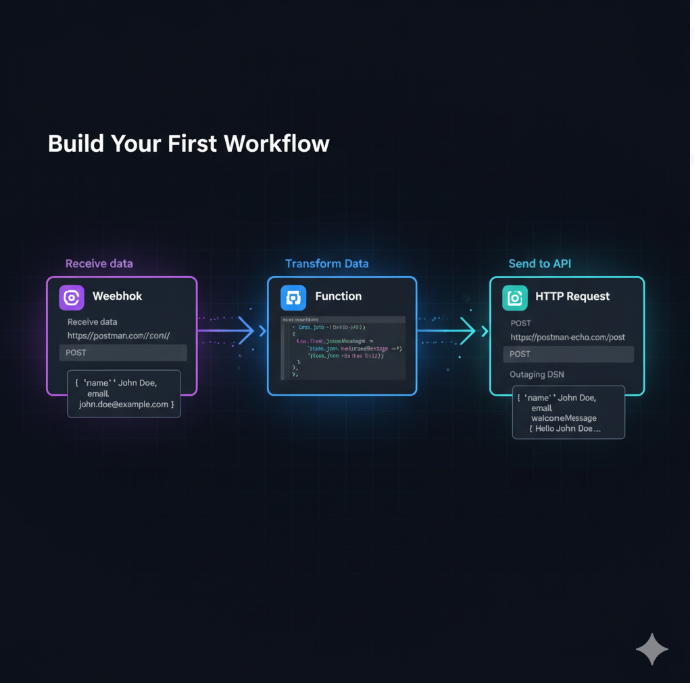

5) Build your first workflow — webhook → transform → API call

A very common pattern is: external service POSTs to a webhook → n8n transforms data → n8n calls another API or sends a Slack message.

Step-by-step:

1. In the editor click New Workflow → add a Webhook node (Trigger). Set HTTP Method = POST and choose a path (e.g., /incoming/contact).
   Tip: while developing use the Test URL (the test webhook stays active for ~120s), then switch to the Production URL when you go live.

2. Add a Set or Function node to map / transform fields (normalise phone numbers, extract email, etc.).

3. Add an HTTP Request node (or a built-in Slack/Gmail node) to send the processed data to the destination API. Configure credentials in the UI (Credentials → Create new).

4. (Optional) add a Respond to Webhook node if you want to return computed results immediately to the caller — use this to build simple API endpoints. Respond to Webhook gives you control over the exact response and behavior.

5. Save, Execute Workflow for a manual test, then Activate when you’re happy (activate toggles running mode and creates production webhook URL).

Example curl test:

curl -X POST https://your.domain.tld/webhook/incoming/contact \
  -H "Content-Type: application/json" \
  -d '{"name":"Alice","email":"alice@example.com"}'

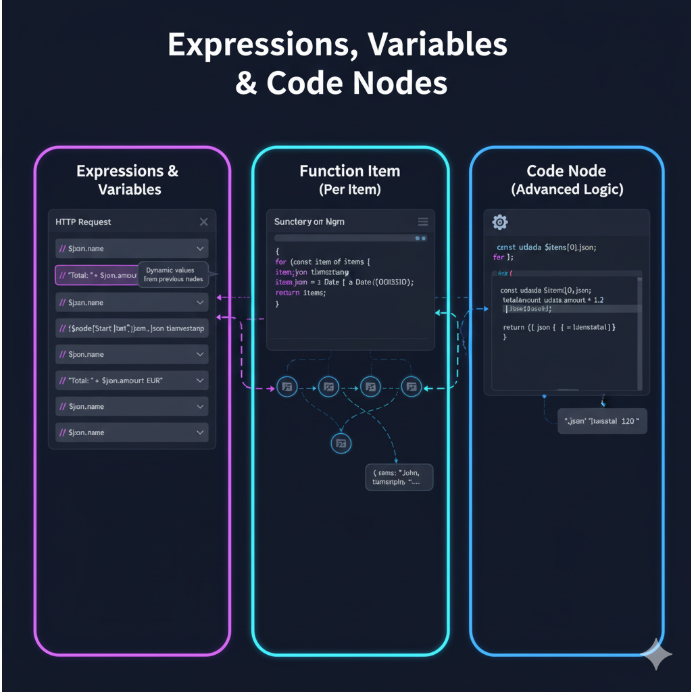

6) Expressions, variables & code nodes — transform data like a pro

• n8n expressions let you read data from the current item, other nodes, environment variables, or static variables. Examples: {{$json["email"]}}, {{$node["Webhook"].json["body"]["id"]}}. You can also use helper methods like $now or $item() inside expressions.

• The Code node (JavaScript) lets you write custom logic:

  // Code node (JavaScript)
  return items.map(item => {
    item.json.fullName = item.json.firstName + ' ' + item.json.lastName;
    return item;
  });




• Custom Variables / env vars: you can reference environment variables as $env.VAR_NAME or instance variables (vars) where supported — useful for API keys, constants or feature toggles. Note: some variable features depend on plan/edition.


7) Credentials & security — what you must set for production

1. Encryption key: set N8N_ENCRYPTION_KEY in environment or a file. All workers/main process must use the same key; losing it implies re-creating credentials.

2. Secure the UI: enable basic auth or proper SSO depending on your deployment. Basic auth can be toggled via env vars (community examples use N8N_BASIC_AUTH_ACTIVE, N8N_BASIC_AUTH_USER, N8N_BASIC_AUTH_PASSWORD — check your version & hosting docs). For production, prefer reverse proxy (TLS) + SSO/OAuth where possible.

3. Webhooks: never expose unprotected webhooks for public automation. Use header API keys, JWTs, HMAC signature validation or IP whitelists. n8n supplies example secure webhook templates and community best practices (HMAC verification using a shared secret). When using webhooks behind reverse proxies, set WEBHOOK_URL so n8n can generate correct public URLs.

4. Least privilege credentials: create dedicated credentials in n8n for each external API with minimum privileges, rotate keys periodically.

8) Testing, error handling & retries

• Test webhook vs Production URL: use the test webhook while developing (it’s ephemeral), then move to production webhook once stable.

• Error-handling workflows: n8n supports dedicated Error Workflows triggered by the Error Trigger node — design a workflow that runs when other workflows fail (send alerts, log details, auto-retry). You can add explicit “Stop and Error” nodes to intentionally fail when validation fails so the Error Workflow is invoked.

• Retrying failed executions: the UI exposes retry options per execution (retry with currently saved workflow, etc.). For automated retry strategies, many users build scheduled retry engines or use the n8n API to requeue executions. Note: historically retries start from the beginning of the workflow.

9) Scale with Queue Mode & workers

For production workloads where many executions or heavy tasks occur, queue mode separates the main UI/process from execution workers. Pattern:

• Main process: receives webhooks / creates execution records → pushes execution ID into Redis queue.

• Worker(s): pick jobs from Redis → fetch execution details from DB (Postgres) → run workflow. This keeps UI responsive and allows horizontal scaling of workers. Configure queue mode via environment variables and Redis settings.

Common pitfalls:

• Redis connectivity/config mismatch (workers won’t pick jobs). Check QUEUE_BULL_REDIS_* env vars are consistent across services.

10) Good practices & common patterns

• Modular workflows: split complex flows into sub-workflows (Execute Sub-workflow node) to reuse logic.

• Idempotency & dedup: webhooks can be retried; ensure your endpoints are idempotent/handle duplicates.

• Rate-limit external APIs: add Delay nodes and check status codes to avoid throttling.

• Observability: enable logging, keep execution history retention settings appropriate, and export metrics/logs to your monitoring stack.

• Secrets management: use .env files only during development; in production use a secret manager, and never commit secrets to git.

• Backups: export workflows and backup your DB and encryption key regularly.

11) Troubleshooting quick hits

• Webhook shows localhost in URL when behind reverse proxy → set WEBHOOK_URL and N8N_PROXY_HOPS.

• “Credentials could not be decrypted” after container recreation → likely lost N8N_ENCRYPTION_KEY or unpersisted .n8n config; restore the key or recreate credentials.

• Workers not processing jobs → check Redis connectivity and EXECUTIONS_PROCESS=queue + N8N_MODE=worker settings.

12) Useful workflow examples & recipes (ideas you can copy)

• Secure webhook → validate HMAC → write to Postgres → notify Slack (common for payment/transaction events). (n8n community has HMAC webhook validation templates.)

• Form → enrichment (company lookup API) → CRM create/update → email notification.

• Daily report — Cron trigger → aggregate sales data (SQL nodes) → generate CSV → upload to Google Drive.

• Auto-retry manager — Scheduled workflow that finds failed executions and retries them via the API — community templates exist for this.

13) Production checklist & reminders

• Decide: Cloud vs Self-hosted. (Cloud = fast, Self-hosted = control.)

• Use Postgres (not SQLite) for production and persist volumes.

• Configure queue mode & Redis if you expect concurrent/long jobs.

• Set N8N_ENCRYPTION_KEY and back it up.

• Protect webhooks: header auth, HMAC verification, IP allowlists, or pre-shared secret checks.

• Configure proper webhook WEBHOOK_URL when behind reverse proxy.

• Add monitoring/alerting for failed executions, high error rate, or worker failures.

• Automate regular backups (DB + workflows + encryption key).

14) Where to read next (short list of docs & templates)

• n8n Docker installation & server setups — official docs.

• Webhook node & development patterns (test vs production) — official webhook docs.

• Expressions & Code node cookbook — learn the expression helpers and built-ins.

• Queue mode & scaling guide (Redis + workers) — official scaling docs.

• Example secure webhook workflows (HMAC, API-key gating) — published n8n workflow templates / community snippets.

Final tips (wrap up)

• Start small: build a single webhook → transform → write flow and iterate.

• Use the Test webhook extensively while designing; move to Production URL only when stable.

• Move to a Postgres + queue mode deployment before you depend on n8n for critical automations. Queue + workers + Redis is the recommended architecture for production scale.
